Toshiba Expands Line-up of Photorelays in Industry's Smallest Package

Features include low off-state capacitance, low on-state resistance and high-voltage

2015-04-01 13:57
  • zh_cn
  • zh_hant
  • en

TOKYO--()--Toshiba Corporation’s (TOKYO:6502) Semiconductor & Storage Products Company today announced that it will expand its lineup of photorelays in the industry’s smallest[1] package, VSON4[2], with the addition of six products that offer low off-state capacitance, low on-state resistance and high-voltage. These latest additions to the “TLP34xx series” start shipping today. By expanding the variation of voltage and “C x R”, the photorelays can support a variety of applications including semiconductor testers, measuring equipment and medical equipment.

The new products have the same electrical characteristics as Toshiba’s small-size package USOP4 series, but reduce required assembly area by approximately 50%[3] by using the industry’s smallest package, VSON4. This can contribute to smaller and thinner products, and also makes it possible to significantly increase the number of photorelays on a circuit board without increasing its size.

The new line-up includes “TLP3442,” which realizes the industry’s lowest[4] off-state capacitance (COFF), 0.3pF (typ.), and “TLP3431,” which is suited for use in high-frequency signal transmission with a low on-state resistance (RON) of 0.8ohm (typ.). The “TLP34xx series” provides a total system solution with a product line-up that covers both the low COFF and low RON range in an ultra-small VSON4 package.

Key Features of New Products:

  • VSON4 package: Thickness 1.3mm (max), Area 1.5mm×2.5mm (max.)
  • Trigger LED current: 3 mA (max)
  • Isolation voltage: 300 Vrms (min.)

Main Applications:

  • Automatic Test Equipment (ATE)
  • Measuring instruments
  • Medical equipment
  • Reed relay replacement


Main Specifications:

(@Ta=25℃)

Part No.   VOFF   ION   RON   COFF   C(pF)xR(Ω)   IOFF   tON   tOFF
  (min)   (max)   (typ)   (typ)   (typ)   (max)   (max)   (max)
TLP3419   80V   200mA     6.5pF   39   1nA   0.4ms   0.4ms
TLP3451   60V   120mA   10Ω   0.7pF   7   1nA   0.2ms   0.2ms
TLP3441   40V   140mA     0.7pF   4.9   1nA   0.2ms   0.2ms
TLP3442   40V   100mA   15Ω   0.3pF   4.5   1nA   0.2ms   0.2ms
TLP3431   20V   450mA   0.8Ω   5.0pF   4   1nA   0.5ms   0.5ms
TLP3450   20V   200mA     0.8pF   2.4   1nA   0.2ms   0.2ms



Notes
[1], [4] For photocoupler products, as of March 31, 2015. Toshiba survey.
[2] VSON: Very Small Outline Non-leaded.
[3] Toshiba survey.

Follow this link for more on Toshiba photocouplers and photorelays.
http://toshiba.semicon-storage.com/ap-en/product/opto/photocoupler.html

Customer Inquiries:
Optoelectronic Device Sales & Marketing Department
Tel: +81-3-3457-3431

Information in this document, including product prices and specifications, content of services and contact information, is correct on the date of the announcement but is subject to change without prior notice.

About Toshiba

Toshiba Corporation, a Fortune Global 500 company, channels world-class capabilities in advanced electronic and electrical product and systems into five strategic business domains: Energy & Infrastructure, Community Solutions, Healthcare Systems & Services, Electronic Devices & Components, and Lifestyles Products & Services. Guided by the principles of The Basic Commitment of the Toshiba Group, “Committed to People, Committed to the Future”, Toshiba promotes global operations towards securing “Growth Through Creativity and Innovation”, and is contributing to the achievement of a world in which people everywhere live in safe, secure and comfortable society.

Founded in Tokyo in 1875, today’s Toshiba is at the heart of a global network of over 590 consolidated companies employing over 200,000 people worldwide, with annual sales surpassing 6.5 trillion yen (US$63 billion).
To find out more about Toshiba, visit www.toshiba.co.jp/index.htm



Contacts

Media Inquiries:
Toshiba Corporation
Semiconductor & Storage Products Company
Koji Takahata, +81-3-3457-4963
semicon-NR-mailbox@ml.toshiba.co.jp

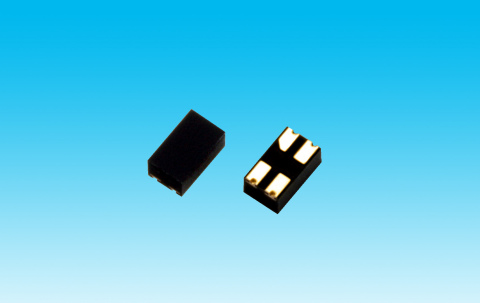

Toshiba: Photorelays in Industry's Smallest Package (Photo: Business Wire)
